| Description | ULTIMATE-CELL STACKABLE Shaking Incubator

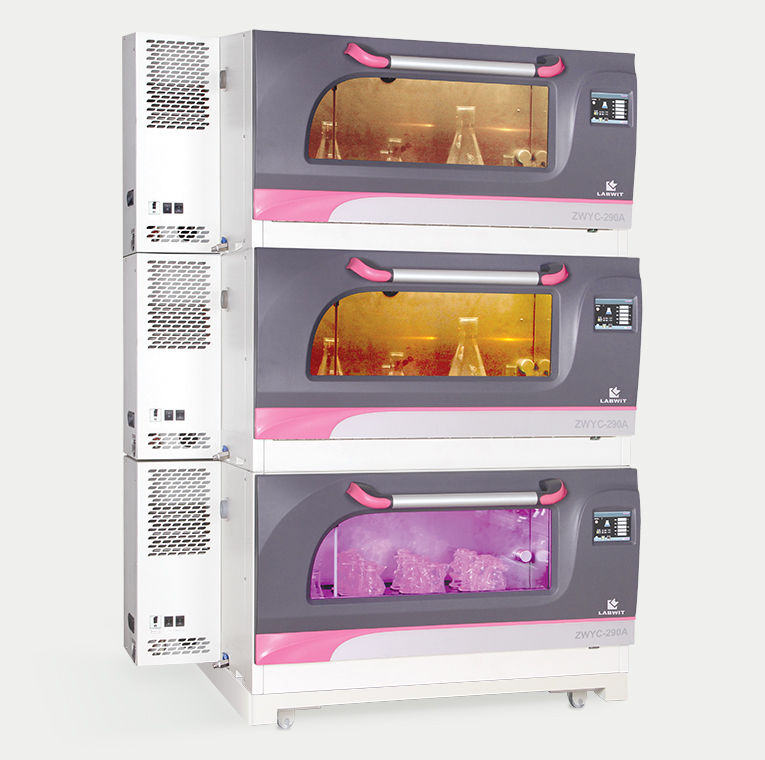

Thanks to the ongoing development of both technology and functionality requirements from our industry, LABWIT has been thriving to innovate and is now able to offer our latest and comprehensive solution for microbial, mammalian and plant cell incubation needs, the inspiring ZWYC-290A Ultimate-cell Stackable Shaking Incubator. The ZWYC-290A can be stacked up to 2-3 units high to offer multiplied incubation capacity on a single unit footprint. Stacking also can be easily managed at a later time. Each compartment unit operates independently with cooling as standard, and can be upgraded with modular controlling options of, active humidity control, CO2 concentration controls. Features ▶ Intuitive Touch Screen Panel
▶ Multi Balanced Driving System With Ф1-50mm Shaking Diameter Adjustment
▶ Excellent Temperature Controlling System
▶ Direct Injection Humidification System
▶ Advanced CO2 controlling with Infrared (IR) sensor
▶ Extended Chamber Capacity for 5L Flasks
▶ Photosynthetic LED Lighting
▶ Contamination Control
▶ Data Logging
▶ Complete Protection For Cell Culture
▶ Password Door Lock System

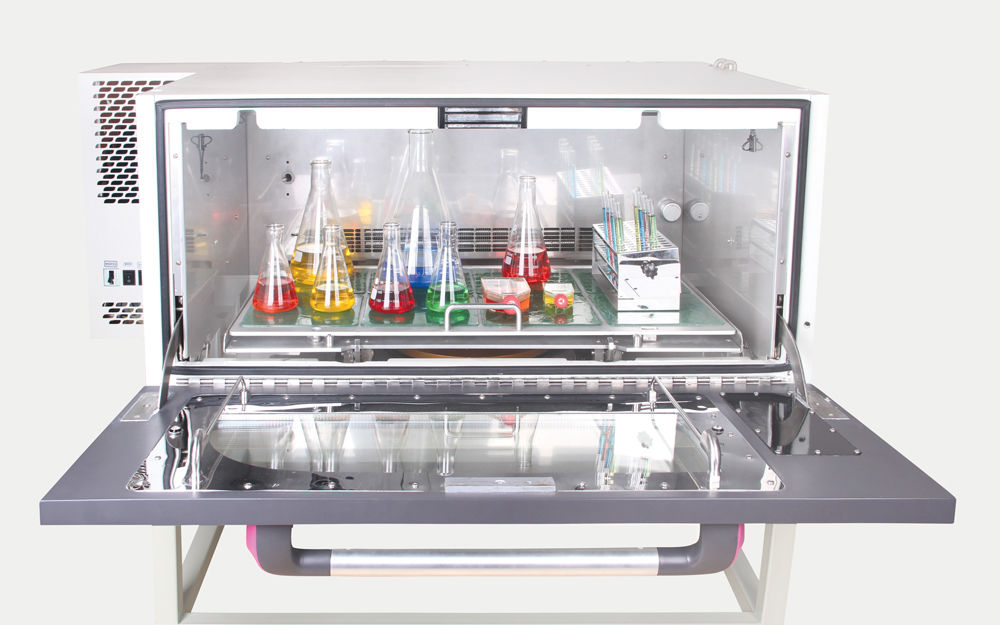

▶ Internal chamber equipped with lighting ensure complete visibility
▶ Fully insulated chamber and door with double folded glass window optimize the energy efficiency
▶ 2pcs of Ф50mm access ports
▶ One piece of predrilled shaking tray included as standard; clamps excluded
▶ Base Options: 35cm cabinet base stand; 50cm Frame base stand
|
| Specifications | | | Machine | | Outside (WxDxH) | 1320x870x590mm (Side Cooling)* | | Inside (WxDxH) | 940x570x480mm | | Volume | 257L | Net/Gross Weight
(with Cooling) | 200kg / 275kg | | Control Panel | TFT Touch Screen | | Illumination | Halogen | | Operation Menu LAN | English | | Ambient Temperature (°C) | 5-35°C | | UV Light | ≥400 mW/m² | | Noise Level | >70 dB (1m above floor) | | Power | 1150W | | Electricity | AC 220-240 Volt, 50/60Hz | | | Temperature | | Control Mode | Fixed Value & Program | | Temperature Range | Ambient-15 to 60°C (Min. 4°C) | | Temperature Accuracy | 0.1°C | | Temperature Uniformity | ±0.5°C @37°C | | Principle of Sensor | PT100 | | Air Circulation | 360m³/Hour | | Recovery (@37°C) | 10 mins (30 Seconds Door Opening) | | | Humidity | | Humidity Range | 40-80%RH, at 25-55°C | | Temperature Range | Ambient-15 to 60°C (Min. 4°C) # | | Humidity Accuracy | 0.1%RH | | Humidity Uniformity | ±3%RH | | Principle of Sensor | Capacitive | | System | Direct Steam Injection | | Water Heater | 150W | | Recovery (@70%RH) | 10 mins (30 Seconds Door Opening) | | | # Min. Operating Temperature: 15°C when
Photosynthetic Lighting option is applied. | | | Shaking Unit | | Drive Type | Multi Balanced Driving System | | Tray Size | 850x450mm | | Maximum Load | 25kg | | Speed Range | 30-300 rpm | | Speed Accuracy | ±1 rpm | | Timer | 0-9999 mins | | Shaking Mode | Orbital | | Shaking Diameter | Ф1-50mm Stepless Adjustment | | | CO₂ | | Principle of Sensor | Infared, NDIR | | CO₂ Range | 0-20% | | CO₂ Accuracy | ±0.15 @ 5.0%g | | Temperature Range | 25-55°C | | CO₂ Recovery (@5%) | 5 mins (30 Seconds Door Opening) | | | Photosynthetic Lighting | | Part Number | P5011RB | P5011W | | Light Type | LED, 50% Red, 50% Blue | LED, 100% Warm White | | Spectrum | Red: 640-660nm,
Blue: 430-450nm | 4500k:400-700nm | | Light Intensity | Up to 700 μmol/(m2*s) | Up to 400 μmol/(m2*s) | | Control | Yes, Individually,
from 0-100% output | Yes,
from 0-100% output | | Control Mode | Fixed Value & Programmable | | Dimensions (WxDxH) | 890 x 500 x 10mm | | Power | 300W | | Flask (ml) | P8021
50ml | P8022
100ml | P8023
250ml | P8024
500ml | P8026
1000ml | P8027
2000ml | P8028
3000ml | P8029
5000ml | P8012
96 Well Plate | P8010
Tube Rack | | P6023 Tray | 98 | 72 | 50 | 32 | 18 | 11 | 8 | 6 | 24 | 8 | | P6022 Tray | 91 | 70 | 40 | 26 | 15 | 11 | 8 | 5 | 15 | 8 | | | Order Information | | ZWYC-290A | Ultimate-Cell Stackable Shaking Incubator, 257Lx1, 4-60, 30-300rpm | | P5011W | LED Lighting Panel, For ZWYR-D2401/D2402/D2403, ZWYC-290A, White | | P5011RB | LED Lighting Panel, For ZWYR-D2401/D2402/D2403, ZWYC-290A, Red & Blue | | P5012-35 | Cabinet Base Stand for ZWYC-290A, H35cm | | P5012-50 | Frame Base Stand for ZWYC-290A, H50cm | | P5013 | Direct Steam Humidification Kit for ZWYC-290A | | P5014 | IR CO2 Kit for ZWYC-290A | | P5016 | RS-485 Interface | | P6022 | Tray for ZWYC-290A, Predrilled | | P6023 | Tray for ZWYC-290A, Plain | | P7024 | Universal Spring Pallet for ZWYC-290A | | P8010 | Tube Rack S/S | | P8011 | Tube Rack ABS Plastic | | P8017 | Sticky Mat, 20 x 20cm | | P8021 | O Clamp, S/S, for 50ml Flask, with Spring Retainer | | P8022 | O Clamp, S/S, for 100ml Flask, with Spring Retainer | | P8023 | O Clamp, S/S, for 250ml Flask, with Spring Retainer | | P8024 | O Clamp, S/S, for 500ml Flask, with Spring Retainer | | P8025 | O Clamp, S/S, for 750ml Flask, with Spring Retainer | | P8026 | O Clamp, S/S, for 1000ml Flask, with Spring Retainer | | P8027 | O Clamp, S/S, for 2000ml Flask, with Spring Retainer | | P8028 | O Clamp, S/S, for 3000ml Flask, with Spring Retainer | | P8029 | O Clamp, S/S, for 5000ml Flask, with Spring Retainer | | P8032 | Clamp for 96 Well Plate, S/S | | | ※ S/S: Stainless Steel | |
